playing dough filling packing machine

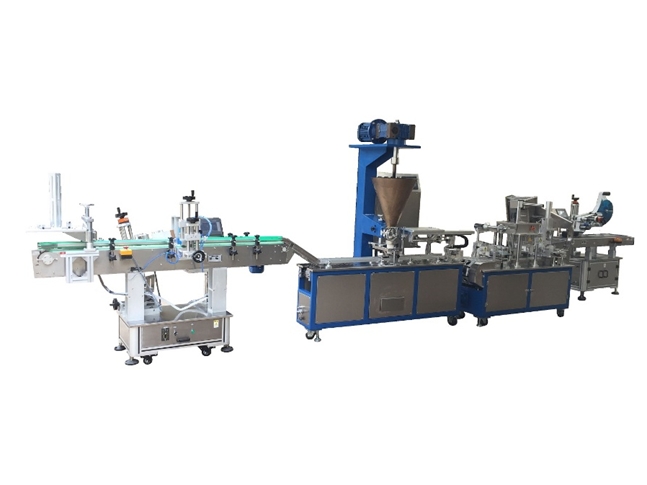

Fully Automatic Cup Play Dough Filling Machine

The Cup Play Dough Filling Machine is a specialized equipment designed to automate the process of filling play dough into cups. It is specifically developed for play dough manufacturers or businesses that require high-volume production.
This Stationery Machine is equipped with advanced technology and features, making it efficient and precise in its operation. It can handle various cup sizes and shapes, accommodating the specific requirements of different play dough products.
The filling process is automated, ensuring consistent and accurate measurements of play dough for each cup. The machine is capable of controlling the amount of play dough dispensed, minimizing wastage and maximizing productivity.

Shaoxing G Star Stationary Company is specializing in the production of stationery manufacturing machines, Pencil Making Machine for pen, Wax Crayons & Oil Pastels Making Machine, Pens Assembly Machine, etc. If there is anything you need, please feel free to contact us at any time.

Functional Features:

Complete production process: Automatic cup loading, automatic labeling, automatic clay forming and cutting, automatic film sealing, automatic coding, automatic lid arranging, and automatic lid sealing.

Cup loading requirement: Overlapping cups are manually placed on the cup loading rack, and the machine automatically places them individually on the conveyor belt for cup filling.

Material feeding requirement: Color clay is manually added to the hopper.

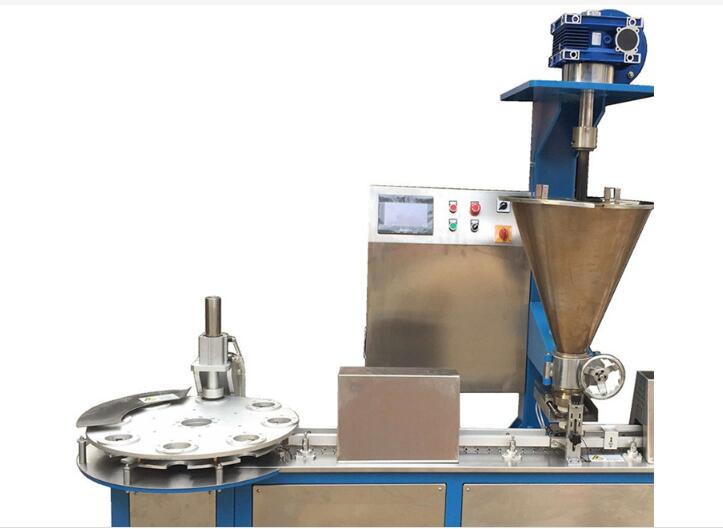

Clay cup filling: Color clay is automatically extruded, formed, measured (5 ounces with an accuracy of ±3 grams), cut, and filled into the cups using the hopper and screw (made of iron-fluorine nylon).

Film sealing: With film sealing capability.

Coding: With color ribbon coding capability.

Lid sealing requirement: The lids are automatically sorted and fed into the lid sealing station using an automatic lid arranging machine, and then automatically sealed.

External Configuration:

One labeling machine.

Main Machine Configuration:

PLC: Brand - Mitsubishi, Origin - Japan.

Touchscreen: Brand - Weiluntong, Origin - Taiwan.

Pneumatic Components: Brands - Yadeke, Xingchen, Origin - Joint venture, China.

Motor, Gearbox: Brand - Domestic, Origin - China.

Divider: Brand - Joint venture, Origin - China.

Technical Parameters:

Machine length: Approximately 4.5m.

Total power: 4 KW.

Capacity: 2000 cups/hour.

Washing time: Not exceeding 30 minutes per cycle.

Power requirements: 380V 50Hz/60Hz.
