modeling clay kneader

Product DescriptionKneader can be kneaded a variety of viscosity of the CMC, can also be used in the chemical industry, plastics, rubber, ink, carbon, medicine, food and other industries. Such as: high viscosity sealant, silicone rubber, neutral acid glass glue, chewing gum, bubble gum, pulp, cellulose, also used in batteries, inks, pigments, dyes, resins, plastics, rubber, cosmetics and so on. For a variety of viscosity of the material can be strong kneading, extrusion and other effects, so that the material as soon as possible to achieve the process requirements.

Kneader principle

Kneader is a pair of mutual cooperation and rotation of the Z-type stirring paddle mutual operation, so that the material mixing produced by the strong shear effect, and make the semi-dry state or rubbery viscous plastic material material rapid reaction, so as to obtain a uniform mixing state.

Kneader material

Kneader material can be divided into: carbon steel material, stainless steel material. Kneader is also divided into ordinary type, electric heating type, vacuum type.

Kneader discharge mode is divided into: manual cylinder discharge, hydraulic cylinder dumping, ball valve discharge type and screw extrusion type.

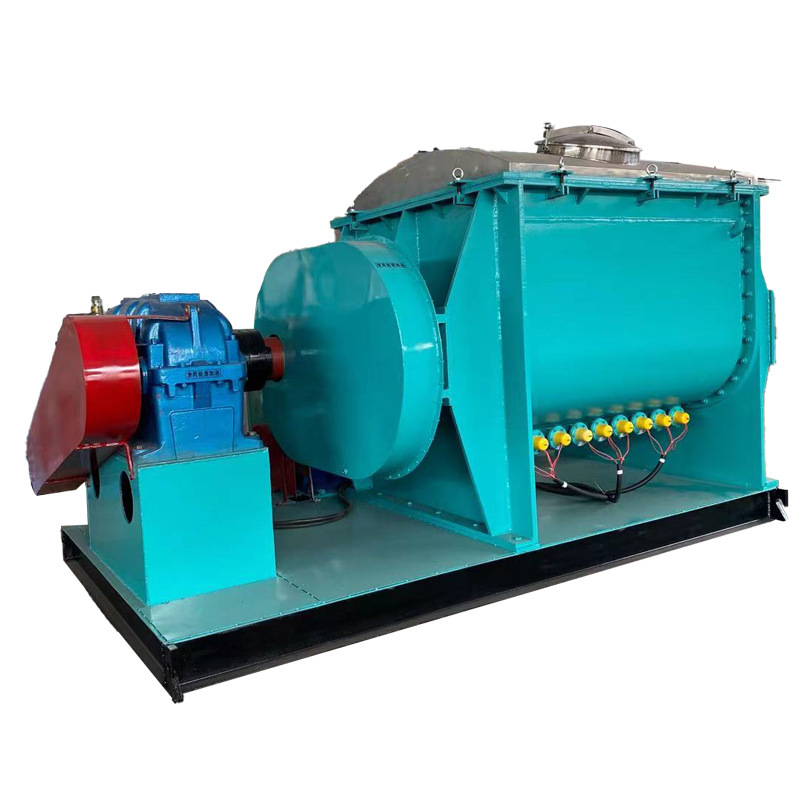

The structure of the kneading machine

Kneader is mainly composed of kneading paddle part, machine base and support part, hydraulic system, rotation system and electric control system and other five major components. Kneader has two Z-type paddles, the speed of the two paddles is different, according to different processes can be set to different speeds, the common speed is 42/28 revolutions per minute, the two mixing can be forward or reverse rotation. Hydraulic system is operated by a hydraulic station to complete the function of turning cylinder, opening and closing the cover, etc. The detail parameters can be selected and requested by the user arbitrarily, and the operation is convenient and reliable. Electric control system: the kneader is equipped with an ordinary control cabinet. If the customer's material has special requirements, need to work in explosion-proof conditions, can be isolated using the control cabinet. If the material viscosity is too large, you can use the autocoupling reduced voltage starter.

Package and shipment:

Our machines packed in strong seaworthy wooden case

Our Services

Before-sales

·         We will provide free and professional service for consulting on plastic granules production.

·

·         We will arrange you to our current clients to see how our machines work if request.

During sales:

·         Inform you the project processing status on time

·

·         Provide assistance in technical conditions,

·

·         Arrange trial production of your project before delivery, make sure the quality is same as we committment

After-sales:

·         Provide installation and training service

·         Offer enough spare parts

·         Provide 12 months free maintenance.
